WCS 7.5 strengthening #7485857
02/05/22 01:56 PM
02/05/22 01:56 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin

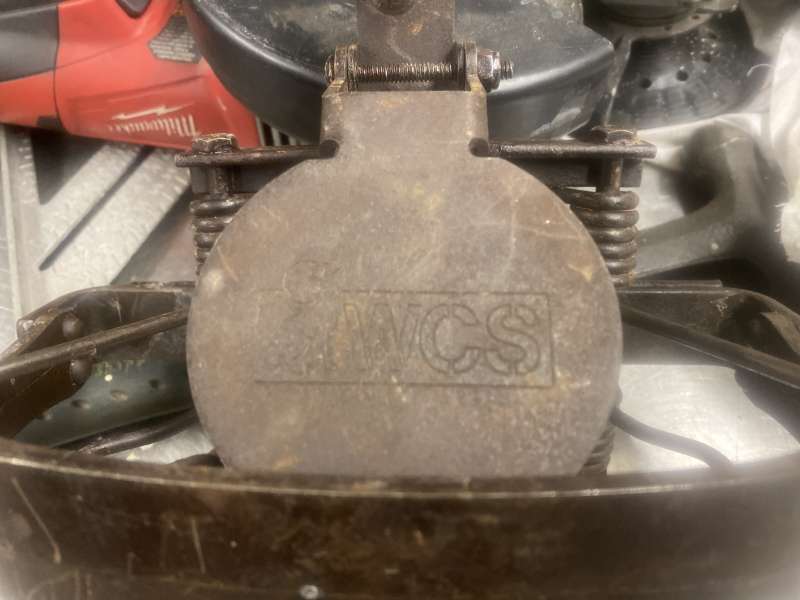

Was having so much fun I thought I would share.Nice to spend $34.00 on a trap then have to invent a way to make it work right not to mention the time to fix them.Materials used were 3/8”x1 1/2” flat stock-1” square tubing and 3/16 drill bit.

72B724BE-B558-4AD8-AEFD-EB838079E7A9.jpeg50184B76-5908-41AB-9031-DDA228329DA6.jpeg2C046A47-22B5-4E55-943F-63C2410D63EC.jpeg7A619374-EC23-47F0-8111-8BFA619457AF.jpegB74C043D-2584-45FA-B3B6-942A17937627.jpeg
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485858
02/05/22 01:58 PM
02/05/22 01:58 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
A couple more pics of project.

7A636928-39AA-47FA-BC63-0D8A862EBFB4.jpeg795EF1DF-290D-4BFB-8A23-4D9DF4A638AF.jpeg11C92D43-70E8-47F3-8487-A0E37A9FFA7D.jpeg
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485882
02/05/22 02:35 PM
02/05/22 02:35 PM
Joined: Dec 2006
Northern Illinois
M
MChewk Offline
trapper
MChewk  Offline
trapper
M

Joined: Dec 2006
Northern Illinois
Nice work have you contacted WCS about this issue?

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485904
02/05/22 02:54 PM
02/05/22 02:54 PM
Joined: Dec 2009
The Hill Country of Texas
Leftlane Offline
"HOSS"
Leftlane  Offline
"HOSS"

Joined: Dec 2009
The Hill Country of Texas
You've gone full Cletus Richards on us ain't ya?


What"s good for me may not be good for the weak minded.
Captain Gus McCrae- Texas Rangers


Re: WCS 7.5 strengthening [Re: Leftlane] #7485910
02/05/22 03:03 PM
02/05/22 03:03 PM
Joined: Dec 2006
Minnesota
330-Trapper Offline

trapper
330-Trapper  Offline

trapper

Joined: Dec 2006
Minnesota
Originally Posted by Leftlane
You've gone full Cletus Richards on us ain't ya?

wink


NRA and NTA Life Member
www.BackroadsRevised@etsy.com




Re: WCS 7.5 strengthening [Re: MChewk] #7485912
02/05/22 03:07 PM
02/05/22 03:07 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
Originally Posted by MChewk
Nice work have you contacted WCS about this issue?


I haven’t but loosanarrow has.Doesn’t sound like they have a warranty.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485918
02/05/22 03:28 PM
02/05/22 03:28 PM
Joined: Dec 2006
Williamsport, Pa.
J
jk Offline
trapper
jk  Offline
trapper
J

Joined: Dec 2006
Williamsport, Pa.
I have increased spring tension by almost the same way. But not with metal, I have taken the spring type clothes pins apart and slid one wooden piece under the spring between the cross plate and the spring arm piece that rest on the cross piece. You have to break off a bit of the narrow wooden end but that did a good job for me = temporary of course........jk


Free people are not equal. Equal people are not free. What's supposed to be ain't always is. Hopper Hunter
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485943
02/05/22 04:20 PM
02/05/22 04:20 PM
Joined: Oct 2014
Wisconsin
8117 Steve R Offline
trapper
8117 Steve R  Offline
trapper

Joined: Oct 2014
Wisconsin
I wonder when those were made? I purchased one from WCS about a year ago and it seems to be ok.


Steve
WTA
NRA
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7485945
02/05/22 04:25 PM
02/05/22 04:25 PM
Joined: Dec 2006
WI
T-Rex Offline
trapper
T-Rex  Offline
trapper

Joined: Dec 2006
WI
A lot of intricate thought and craftsmanship there. Nice work.

No way to fab up a better spring?


Man who mistake shillelagh for fairy wand; see pixie dust, also.
Re: WCS 7.5 strengthening [Re: 8117 Steve R] #7486023
02/05/22 05:50 PM
02/05/22 05:50 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
Originally Posted by 8117 Steve R
I wonder when those were made? I purchased one from WCS about a year ago and it seems to be ok.


They were bought from pcs less than 2 years ago.I always used a setter so I never really noticed until recently.

Re: WCS 7.5 strengthening [Re: T-Rex] #7486026
02/05/22 05:52 PM
02/05/22 05:52 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
Originally Posted by T-Rex
A lot of intricate thought and craftsmanship there. Nice work.

No way to fab up a better spring?


That’s above my pay grade.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486036
02/05/22 06:04 PM
02/05/22 06:04 PM
Joined: Mar 2009
Deer lodge, MT
D
Dean Chapel Offline
trapper
Dean Chapel  Offline
trapper
D

Joined: Mar 2009
Deer lodge, MT
Am I mistaken, or are you just doing a modification to increase spring strength? Are you sure that the springs are too weak and are different from when you bought them since you say you've always used setters with them. Are you losing animals? I know if the springs were weak on my traps, I'd just replace the springs. 2 years is an awfully short amount of time for a spring to last.

Re: WCS 7.5 strengthening [Re: Dean Chapel] #7486053
02/05/22 06:22 PM
02/05/22 06:22 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
Originally Posted by Dean Chapel
Am I mistaken, or are you just doing a modification to increase spring strength? Are you sure that the springs are too weak and are different from when you bought them since you say you've always used setters with them. Are you losing animals? I know if the springs were weak on my traps, I'd just replace the springs. 2 years is an awfully short amount of time for a spring to last.


There’s is a thread called CDR history we’re loosanarrow explains the spring problem.I just took to top if your interested.I have had a few empty traps at the end of drowner cable.

Re: WCS 7.5 strengthening [Re: 8117 Steve R] #7486220
02/05/22 08:36 PM
02/05/22 08:36 PM
Joined: Mar 2014
Lakes Region Indiana
L
loosanarrow Offline
trapper
loosanarrow  Offline
trapper
L

Joined: Mar 2014
Lakes Region Indiana
Originally Posted by jk
I have increased spring tension by almost the same way. But not with metal, I have taken the spring type clothes pins apart and slid one wooden piece under the spring between the cross plate and the spring arm piece that rest on the cross piece. You have to break off a bit of the narrow wooden end but that did a good job for me = temporary of course........jk


Wood shims actually work great! The springs indent into the wood a bit which keeps the shim from slipping out and holds the shim in place. I have made them on the spot in the field with just my pocket knife. Only disadvantage is that they need to be replaced occasionally as you said.

Originally Posted by Dean Chapel
Am I mistaken, or are you just doing a modification to increase spring strength? Are you sure that the springs are too weak and are different from when you bought them since you say you've always used setters with them. Are you losing animals? I know if the springs were weak on my traps, I'd just replace the springs. 2 years is an awfully short amount of time for a spring to last.


Replacing the springs is preferred. The trouble is, the replacement springs will be just like the ones on the trap unless you can find some old springs from the original CDR. If I could find more of them I would be changing them. Right now I would be surprised if you can find any replacement springs at all.

Originally Posted by 8117 Steve R
I wonder when those were made? I purchased one from WCS about a year ago and it seems to be ok.

Do you have some old original CDR’s with MO pans to compare? How a about NY pans? The NY pans have stronger springs than the WCS, but I still shim them to get them to match the MO pan strength. How many beavers have you caught in them? Have you lost any? I have run originals, 2nd gen, and WCS side by side - in numbers and year-round - and until you do that you have no frame of reference.

I did tell WCS. The rep I spoke with definitely listened to what I had to say, and said he would make sure to bring it up. As I understand it, the current owners did not make the last run of traps. Hopefully they will fix it on the next run. It should be a simple fix, since it appears to be an error winding the springs, they were wound a bit “too far”. This is easy to see once you have the springs from all 3 generations removed and sitting side by side. And easy to tell when you try to put those springs back on - if you have the old original CDRs I recommend not removing the springs unless you are prepared to make a special tool to put them back on - and if you have the originals no need to remove them in the first place, just catch beaver with them.

I tried a lot of stuff, some worked some did not. I even “unwound” some of the springs and then re-heat treated them in an industrial oven. In the end, shims work as well as anything and are the simplest fix I have found.

Having tinkered with them all, the WCS version of the CDR is actually my favorite build of them all if it were not for the weaker springs. If WCS can return to the original 1st generation CDR spring strength, I will be begging them to take my money.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486234
02/05/22 08:47 PM
02/05/22 08:47 PM
Joined: Jul 2013
Amite county Mississippi
Wolfdog91 Offline
trapper
Wolfdog91  Offline
trapper

Joined: Jul 2013
Amite county Mississippi
Why cant you live near me ? Would love to have some like you to irritate with build and modding traps grin


YouTube expert
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486326
02/05/22 09:56 PM
02/05/22 09:56 PM
Joined: Mar 2015
Ontario Canada
D
d2009 Offline
trapper
d2009  Offline
trapper
D

Joined: Mar 2015
Ontario Canada
Interesting. Mine have the New York pans.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486690
02/06/22 09:21 AM
02/06/22 09:21 AM
Joined: Dec 2006
Northern Illinois
M
MChewk Offline
trapper
MChewk  Offline
trapper
M

Joined: Dec 2006
Northern Illinois
Seems like mad scientist and loosanarrow could start a trap modification business working on these traps.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486705
02/06/22 09:37 AM
02/06/22 09:37 AM
Joined: Dec 2006
Alabama (Bama for short) 108 y...
Jtrapper Offline
trapper
Jtrapper  Offline
trapper

Joined: Dec 2006
Alabama (Bama for short) 108 y...
Shouldn't have to a thing to a CDR but set them! Glad i still have several of the old one's.


Not my circus, not my clowns.
Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486885
02/06/22 12:51 PM
02/06/22 12:51 PM
Joined: Nov 2008
Illinois
R
ratbrain Offline
trapper
ratbrain  Offline
trapper
R

Joined: Nov 2008
Illinois
Mine were produced by Adirondack Manufacturing. Still VERY strong.

Re: WCS 7.5 strengthening [Re: Mad Scientist] #7486919
02/06/22 01:30 PM
02/06/22 01:30 PM
Joined: Feb 2021
Wisconsin
M
Mad Scientist Offline OP
trapper
Mad Scientist  Offline OP
trapper
M

Joined: Feb 2021
Wisconsin
Does anyone have a pan pic they can share?
