Cast iron stove project #7712979
11/09/22 02:12 PM
11/09/22 02:12 PM
Joined: Jul 2013
Posts: 9,552
Amite county Mississippi
Wolfdog91 Offline OP
trapper
Wolfdog91  Offline OP
trapper

Joined: Jul 2013
Posts: 9,552
Amite county Mississippi

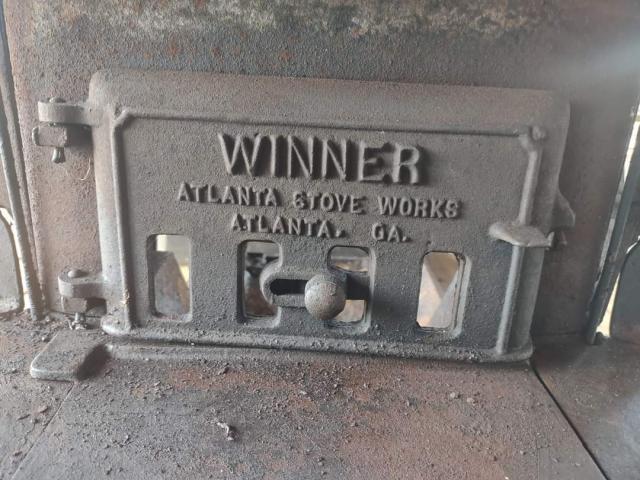

So my uncle found this and asked if I knew how to weld cast iron. Would love to try and fix this old stove up but never welded cast. Know you should drill a hole at each end of a crack so it won't spread and pre heating the weld area is also important but what else ? Andy type of perticular rod or wire ? Sorry only have access to mig and stick on my yes welder. Could to DC Tig but not set up for that rn. Thanks

[Linked Image]
[Linked Image]
[Linked Image]

Last edited by Wolfdog91; 11/09/22 02:38 PM. Reason: Typos

Trappermans Resident Black Guy
The Black Redneck! 22yrs
MS National Guardsmen
I Like Moddin Traps 'N Trapping Possums
Go Ordnance!!!!
Tman Archivist
Re: Cast iron stove project [Re: Wolfdog91] #7712986
11/09/22 02:28 PM
11/09/22 02:28 PM
Joined: Nov 2017
Posts: 4,594
West Central MN
20scout Offline
trapper
20scout  Offline
trapper

Joined: Nov 2017
Posts: 4,594
West Central MN
Had a shop teacher in HS that showed us how to weld cast. The big thing I recall was to heat up the cast iron with a torch and then weld. Allow it to cool slowly to prevent spider cracks. I'm sure there are some video on YouTube that can help.


Common sense is a not a vegetable that does well in everyone's garden.
Re: Cast iron stove project [Re: Wolfdog91] #7712990
11/09/22 02:31 PM
11/09/22 02:31 PM
Joined: Dec 2006
Posts: 1,520
ny
G
gcs Offline
trapper
gcs  Offline
trapper
G

Joined: Dec 2006
Posts: 1,520
ny
Not much help on welding other then a special rod and a good pre heat, but you can consider brazing too, a lot of cast is brazed when its cracked.

Re: Cast iron stove project [Re: Wolfdog91] #7712993
11/09/22 02:33 PM
11/09/22 02:33 PM
Joined: Jan 2007
Posts: 3,289
MD
D
DaveP Offline
trapper
DaveP  Offline
trapper
D

Joined: Jan 2007
Posts: 3,289
MD
Last cast thing I welded was crack in an exhaust manifold on a '67 Camaro, probably in late '70s.
Heated with oxy-acet then welded.
Held, but put headers on it soon after.

Also sorta brazed thin cast with a coat hanger.

Re: Cast iron stove project [Re: Wolfdog91] #7713017
11/09/22 02:54 PM
11/09/22 02:54 PM
Joined: Mar 2007
Posts: 34,203
McGrath, AK
W
white17 Offline

"General (Mr.Sunshine) Washington"
white17  Offline

"General (Mr.Sunshine) Washington"
W

Joined: Mar 2007
Posts: 34,203
McGrath, AK
I have "welded a cast bell housing on an old tractor. You want to braze it.....not weld it. Stop drill the ends of the crack and take a grinder and grind that crack open enough to accept the brass when you get it flowing. And.....as mentioned. preheat before brazing. Cleanliness is next to Godliness !


Mean As Nails
Re: Cast iron stove project [Re: Wolfdog91] #7713026
11/09/22 02:57 PM
11/09/22 02:57 PM
Joined: Sep 2013
Posts: 15,147
Green County Wisconsin
G
GREENCOUNTYPETE Offline
trapper
GREENCOUNTYPETE  Offline
trapper
G

Joined: Sep 2013
Posts: 15,147
Green County Wisconsin
we did it once in welding class , grind out the crack to bevel , hole at each end , special rod , pre heated with rosebud oxy acetylene torch let cool slow

might look at these rods they are what I found searching cast iron welding rods
https://www.muggyweld.com/product/77-cast-iron-welding-rod/


America only has one issue, we have a Responsibility crisis and everything else stems from it.
Re: Cast iron stove project [Re: white17] #7713129
11/09/22 04:50 PM
11/09/22 04:50 PM
Joined: Dec 2006
Posts: 19,578
St. Louis Co, Mo
B
BigBob Online mad
trapper
BigBob  Online Mad
trapper
B

Joined: Dec 2006
Posts: 19,578
St. Louis Co, Mo
Originally Posted by white17
I have "welded a cast bell housing on an old tractor. You want to braze it.....not weld it. Stop drill the ends of the crack and take a grinder and grind that crack open enough to accept the brass when you get it flowing. And.....as mentioned. preheat before brazing. Cleanliness is next to Godliness !

With a CI stove, build a fire inside the stove to slowly bring the temp up to a dull red, weld the crack, and bring temp up again. Then let cool as SLOWLY as possible, like bury it in floor dry/kitty litter and leave it set for a few days to stress relieve the iron.


Every kid needs a Dog and a Curmudgeon.

Remember Bowe Bergdahl, the traitor.

Beware! Jill Pudlewski, Ron Oates and Keven Begesse are liars and thiefs!
Re: Cast iron stove project [Re: Wolfdog91] #7713196
11/09/22 06:41 PM
11/09/22 06:41 PM
Joined: Jan 2010
Posts: 396
virginia,MN
B
beavert Offline
trapper
beavert  Offline
trapper
B

Joined: Jan 2010
Posts: 396
virginia,MN
Vee it out, preheat, arc weld with nickel or stainless rod let it cool slow, no water or braze.

Re: Cast iron stove project [Re: Wolfdog91] #7713207
11/09/22 07:03 PM
11/09/22 07:03 PM
Joined: Dec 2006
Posts: 8,668
Magna, Utah
G
GritGuy Offline
trapper
GritGuy  Offline
trapper
G

Joined: Dec 2006
Posts: 8,668
Magna, Utah
Wolf, cast iron is not the big bug a boo it used to be, there are plenty of stick rods dedicated to cast iron use.

You don't need large diameter rods either 3/32 is probably just right for that once you place a small v in the crack

Cast iron rod has to be run with a tight arc as well so you need to be on the ball with watching the puddle, pre heating is important to help with additional cracking, age of the cast iron is usually the problem with cracking now days, but pre
heating is used to be safe, you don't need to heat it up to any color just get it nice and warm for when you start welding
so it don't tink when you lay a bead on it, if it does you know to take it a bit higher. V it out again and start over, don't go crazy
laying bead on it , just fill up what's needed to even things up

After you done cover it with something heat resistant to let it cool down on it's own.

Most cast iron rods have a lot of nickel in them so you need things real clean as you can get them, don't be worried about
your welding looking all bumpy and messy either, if its old iron it will have a lot of garbage in it, you just keep v'ing it out
and doing it until it looks to your needs. once its hot from welding you don't need to keep preheating it unless you stop
and it cools way off.

You got doubts PM your questions, I have welded up lots of cast iron in my days with all types of machines, I'd not use bronze or brass on it if you wish to have it look close to the same as those fix's just stand out and most will pop if the stove gets real hot
anyway.


[Linked Image]

Sorry if my opinions or replies offend you, they are not meant to !

Re: Cast iron stove project [Re: Wolfdog91] #7713218
11/09/22 07:19 PM
11/09/22 07:19 PM
Joined: Mar 2010
Posts: 2,771
wyoming southeast
D
danvee Offline
trapper
danvee  Offline
trapper
D

Joined: Mar 2010
Posts: 2,771
wyoming southeast
Done a fair amount its easier to braze but if you are going to weld it heat the area with a rosebud torch to red hot, weld with high nickel rod then pack in sand to cool slow.

Re: Cast iron stove project [Re: Wolfdog91] #7713295
11/09/22 08:21 PM
11/09/22 08:21 PM
Joined: Dec 2006
Posts: 1,182
Sugar Grove, WV
J
JTfromWV Offline
trapper
JTfromWV  Offline
trapper
J

Joined: Dec 2006
Posts: 1,182
Sugar Grove, WV
What needs welded on it? Most cast iron stoves are in panels and clamped together with threaded rod.

Re: Cast iron stove project [Re: Wolfdog91] #7713307
11/09/22 08:29 PM
11/09/22 08:29 PM
Joined: Jan 2019
Posts: 2,345
North central Iowa
B
Bob_Iowa Offline
trapper
Bob_Iowa  Offline
trapper
B

Joined: Jan 2019
Posts: 2,345
North central Iowa
Grit guy advice is pretty good, I use nickel rod, Iíve even done some gears with a mig welder I was in a bind but theyíre still holding, stay away from the dc tig itís to ďperfectĒ of a weld and cracks worse, personal experience with this, Jodie on tips and tricks welding website has a way to use ac tig but Iíve never done that so Iím not sure.

Re: Cast iron stove project [Re: Wolfdog91] #7713308
11/09/22 08:31 PM
11/09/22 08:31 PM
Joined: Jan 2019
Posts: 2,345
North central Iowa
B
Bob_Iowa Offline
trapper
Bob_Iowa  Offline
trapper
B

Joined: Jan 2019
Posts: 2,345
North central Iowa
After looking a little closer if you can bead blast that stove I think would be faster and look pretty good.

Re: Cast iron stove project [Re: Wolfdog91] #7713317
11/09/22 08:38 PM
11/09/22 08:38 PM
Joined: Sep 2013
Posts: 10,318
Northeast Oklahoma
M
Mike in A-town Offline
trapper
Mike in A-town  Offline
trapper
M

Joined: Sep 2013
Posts: 10,318
Northeast Oklahoma
I've been told the source of the cast iron makes a difference. American cast being preferred over import... The reason being the foreign stuff gets whatever will melt added to the mix.
