Bridger #3... 4 coiled question? #7018145
10/15/20 12:59 PM
10/15/20 12:59 PM
Joined: Oct 2012
Posts: 1,163
Wisconsin
E
Eagleye Offline OP
trapper
Eagleye  Offline OP
trapper
E

Joined: Oct 2012
Posts: 1,163
Wisconsin
Just checking yote traps before the season, Iíve noticed on my #3, 4 coiled Bridgers that after a few catches the pan bottoms without firing and needs adjustment. I normally have about 1/3 of the dog in the notch. Could the base plate be bending or flexing causing this issue or should I change my adjustment technique? I don't have this issue with 2 coiled traps.
[Linked Image]

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7018170
10/15/20 02:06 PM
10/15/20 02:06 PM
Joined: Aug 2018
Posts: 999
Pennsylvania
The hammer Offline
trapper
The hammer  Offline
trapper

Joined: Aug 2018
Posts: 999
Pennsylvania
If it is only happening on the 4 coiled ones I'd say your base plate is flexing. I put new #3 music wire springs and four coiled six number 2 Bridgers and noticed the base plate was bowing upward after a season using them. Same as you didn't notice till the following season trap prep. It didn't cause them not to fire tho.

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7018216
10/15/20 03:42 PM
10/15/20 03:42 PM
Joined: Oct 2015
Posts: 2,264
Wyoming
C
cmcf Offline
trapper
cmcf  Offline
trapper
C

Joined: Oct 2015
Posts: 2,264
Wyoming
I file all but 1/32Ē off the top of the notch, close the dog eye to minimize movement square the end and file a 45* on the bottom. This gives me very little movement of the pan. Bend the cross base to level the pan adjust pan tention with pan bolt. I use J.C. Connerís Taos lightening 4coil kits so not full power springs on the 4x side. Havenít seen any bending of the frame, main frame is base plated of course. Hope this helps.


Go as far as you can see, and you will see farther
Zig Ziglar
Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7018321
10/15/20 05:55 PM
10/15/20 05:55 PM
Joined: Sep 2009
Posts: 99
Illinois
R
RRuhl Offline
trapper
RRuhl  Offline
trapper
R

Joined: Sep 2009
Posts: 99
Illinois
Have you changed the pan bolt, or are the original bolt? If I recall Bridgers use a bolt a shade small for the hole. When I was modifying, I always removed the factory bolt and re-drilled hole to accept a 3/16" bolt. Seems like the original bolt, would be okay for a while but with the hole being stamped out, when the would wear into place they were not firing as designed.
I would swap out bolt and readjust.
If you want that night latch, I have been using a hacksaw to create the notch on the end of the dog. And cleanup with a file.
This way they are all the same.

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7018763
10/16/20 06:40 AM
10/16/20 06:40 AM
Joined: Mar 2016
Posts: 1,656
N.E. Nebr
L
LDW Offline
trapper
LDW  Offline
trapper
L

Joined: Mar 2016
Posts: 1,656
N.E. Nebr
I'm running 4 dozen 4 coiled #3 Bridger's. Haven't had any problem with bending the baseplate or out of adjustment at all. I use dogless however, wouldn't think that would make any difference. Really like these traps.

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7018779
10/16/20 07:12 AM
10/16/20 07:12 AM
Joined: Oct 2012
Posts: 1,163
Wisconsin
E
Eagleye Offline OP
trapper
Eagleye  Offline OP
trapper
E

Joined: Oct 2012
Posts: 1,163
Wisconsin
Thanks for the input, there doesn't seem to be a lot of play or lost motion in the pan bolt, when I put a straight edge on the base plate, I can see a little light but probably from normal forming at the factory and doubtful its creating the affect. I tightened up the dog eye (cmfc) and that seemed to solve the issue, from a confidence level I need to overcome- why was it ok last year?

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7020151
10/18/20 04:37 AM
10/18/20 04:37 AM
Joined: Dec 2006
Posts: 2,583
Pa
W
Wright Brothers Offline
trapper
Wright Brothers  Offline
trapper
W

Joined: Dec 2006
Posts: 2,583
Pa
"after a few catches"
"why was it ok last year?"

Because the cross frame got bent inward or upward.





Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7020218
10/18/20 06:57 AM
10/18/20 06:57 AM
Joined: Dec 2017
Posts: 162
Nova Scotia
B
Bruiser1 Offline
trapper
Bruiser1  Offline
trapper
B

Joined: Dec 2017
Posts: 162
Nova Scotia

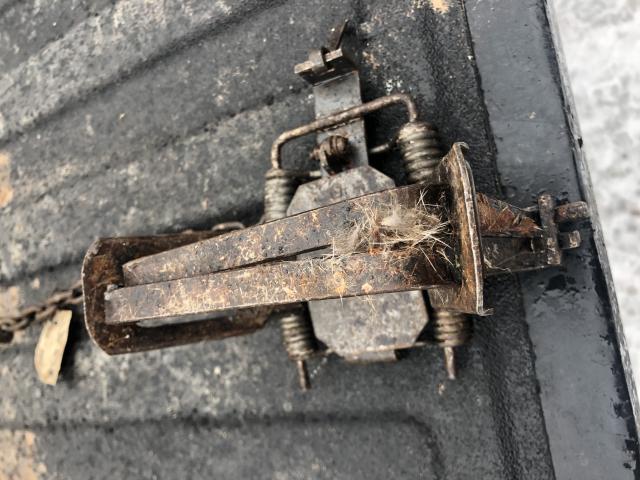

There is definitely a lot of flex in these traps. I had one on a drag and the coyote popped the jaws out when he hit the end. Had to use C clamps and a vice to get back in. Jaws still donít line up perfectly after I fixed it. Iíll see if I can find the pics I took

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7020220
10/18/20 07:00 AM
10/18/20 07:00 AM
Joined: Dec 2017
Posts: 162
Nova Scotia
B
Bruiser1 Offline
trapper
Bruiser1  Offline
trapper
B

Joined: Dec 2017
Posts: 162
Nova Scotia
[Linked Image]
[Linked Image]

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7020225
10/18/20 07:13 AM
10/18/20 07:13 AM
Joined: Jun 2008
Posts: 3,152
SW Pa
W
wr otis Offline
trapper
wr otis  Offline
trapper
W

Joined: Jun 2008
Posts: 3,152
SW Pa
Cross frame is bending up at the spring pin, from the pin out.

Last edited by wr otis; 10/18/20 07:15 AM.
Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7027333
10/25/20 05:21 PM
10/25/20 05:21 PM
Joined: Feb 2008
Posts: 201
WI
B
BvrRetriever Offline
trapper
BvrRetriever  Offline
trapper
B

Joined: Feb 2008
Posts: 201
WI
I run four coiled bridger #3 for beaver...I have them all base plated with PAWSI pans. Never had that problem but beaver probably donít test a trap like coyotes.

Re: Bridger #3... 4 coiled question? [Re: Eagleye] #7027389
10/25/20 06:13 PM
10/25/20 06:13 PM
Joined: Mar 2014
Posts: 730
North dakota
N
Nd native Offline
trapper
Nd native  Offline
trapper
N

Joined: Mar 2014
Posts: 730
North dakota
I have had this exact issue with my Bridger #3s that I four coiled. But I dont think it has anything to do with the springs. I noticed that how I cut the night latch is what goofed it up. The thickness of the metal changed when I ground out the night latch and causes a dip in the pan because the dog and the latch are now making contact at a different angle then they were manufactured at because changing thickness of the metal causes something the touches even to now touch at an angle. I just simply went the frame where the dog attaches outward and it levels them back out. If you have an unmodified trap, set it, check if its level, then cut the night latch and see what happens. That's how I found out what caused mine to do the same.

Last edited by Nd native; 10/25/20 06:15 PM.
