Clear enough for my simple friends that lack imagination?……crazy:







Thanks

I’d say Eaton since that’s what the breaker says.

Ensures all 3 phrases of power and the neutral are disconnected at the same time. Primarily used on unbalanced loads and sensitive equipment prone to harmonic currents.

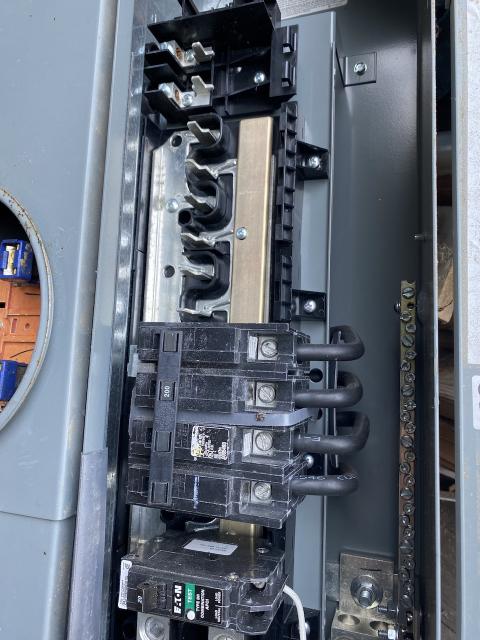

Ok 3 phase panel

How do I determine voltage rating?
I need 277/480. Panel tag is faded

Or is that the only 3 phase available

I only see 2 bus bars. Not 3 phase.

Also is this what the power company would hook up to, or is it intended as a sub meter?

Looks to be an open delta system.

Back up several feet and take another picture. Also take a picture of the inside of the cover/door.

There’s gotta be a sticker or stamp somewhere that’ll tell you everything.
Some breakers will fit in other manufacturers panels, sometimes with force…lol. When we see this during an inspection, the breakers and panel are destroyed on site before we’ll heat er up.

That’s a pretty weird socket/panel combo, or is the panel just jammed right up against the meter socket?
The 200A FMU type with the splitter below the main are the cats meow. I highly recommended them to customers that have future plans. Well worth it for the extra $$$.

Show us a pictures of the meter base that is to the left of breaker box.

Pretty sure that's an old I T E 200 amp single phase 120/240V combination meter back/panel.
They factory paralleled those 2 100 amp 2 pole breakers to come up with a 200 amp rating. That's your main.

It’s a 200 amp 120/240v 1 phase square d homeline meterbase

Where is this? There’s an Eaton breaker in it. I’m coming down with my sledge hammer……..lol

not a thing about how that is wired adds up

It is a meter base with Main that has provisions to feed a sub panel. You have the ability to use larger USE Wire in this box to feed a sub panel that needs power. As far as voltage goes a picture of the meter base would be of great assistance to what you have.

A regular breaker box with main only has connection for small wire like 12/2 etc.....
